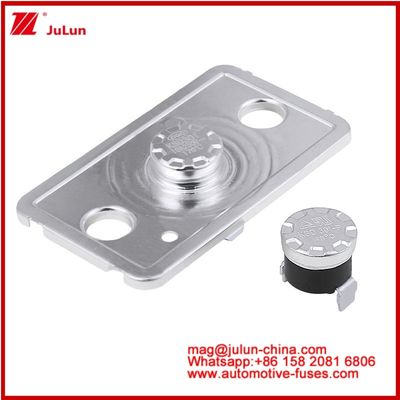

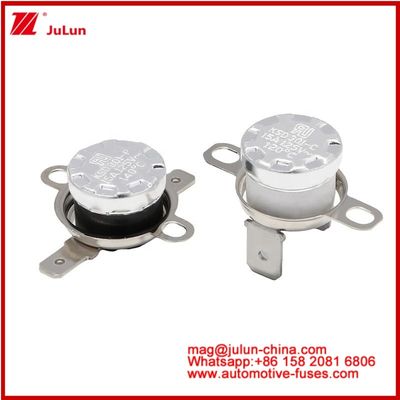

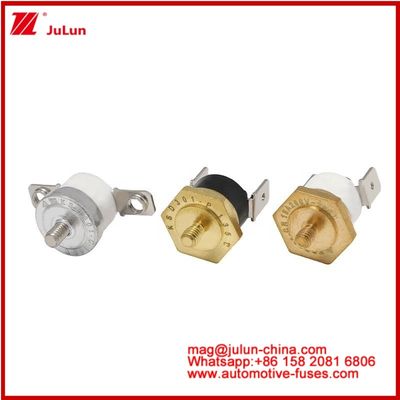

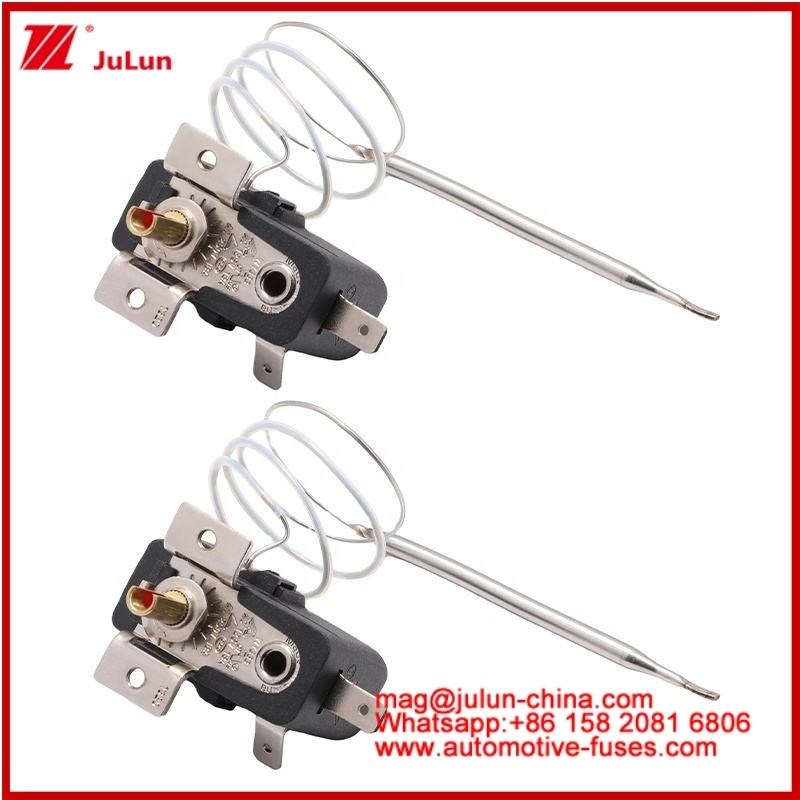

KSD For Home Appliances Ovens Kettles High Quality Bimetal Thermostats Coffee Machines
Produktdetails:
| Herkunftsort: | CHINA |
| Markenname: | JULUN |
| Zertifizierung: | CE UL CCC |
| Modellnummer: | bimetallischer Thermostat KSD |
Zahlung und Versand AGB:
| Min Bestellmenge: | 100 |
|---|---|
| Preis: | 0.7~1.5 |
| Verpackung Informationen: | KARTON |
| Lieferzeit: | 1 bis 2 Wochen |
| Zahlungsbedingungen: | Tt |
| Versorgungsmaterial-Fähigkeit: | 1000K/mal |
|
Detailinformationen |
|||
| Kontaktart: | Normalerweise geschlossen oder normalerweise offen | Temperaturfühlergesicht: | Aluminiumkappe oder kupferner Kopf. |
|---|---|---|---|
| Haus: | Plastik- oder keramisch. | Spannung & Strom: | Wechselstrom 125V maximales 15A; AC250V 5A 10A 15A maximales 16A |
| AktionTemperatur: | 0 ~ 250 °C | Temperaturabweichung:: | Grad ±3/±5/±10 oder entsprechend dem Antrag des Kunden |
| Isolierung resistanc: | AC50Hz 1500V/Minute, keine Zusammenbruchblendung (Normalzustand) | Lebenszyklus: | Zeiten ≥100000 |
| Hervorheben: | bimetal thermostat for home appliances,oven thermostat with warranty,coffee machine temperature sensor |
||
Produkt-Beschreibung
The Thermistor Temperature Sensor has a high insulation resistance of AC50Hz 1500V / Min, with no breakdown or blinding in its normal state. This ensures that the sensor provides accurate temperature readings without any interference. It has an action temperature range of 0~250℃, which makes it suitable for use in various temperature-sensitive applications.
The Thermistor Temperature Sensor is a pin type sensor that can handle a maximum current of 10A and a maximum voltage of 250V. This makes it ideal for use in various electronic applications that require temperature sensing. The sensor is easy to install and provides accurate temperature readings, making it a popular choice for many different applications.
- Product Name: Thermistor Temperature Sensor
- Two kinds of mounting bracket: Movable Or Immovable
- Voltage & Current: AC 125V Max 15A; AC250V 5A 10A 15A Max 16A
- Circuit resistance: ≤50mΩ (Initial Value)
- Life cycle: ≥100000 Times
- Temperature sensor face: Aluminum Cap Or Copper Head
These features make the Thermistor Temperature Sensor ideal for use in various appliances, including Hot Water Kettle, KSD301, with a temperature range of 0~250°C.
| Circuit Resistance | ≤50mΩ (Initial Value) |
| Recovery and Action Temperature Difference | 0 To 25 Degrees, Or According To Client's Request |
| Action Temperature | 0~250℃ |
| Temperature Sensor Face | Aluminum Cap Or Copper Head |
| Life Cycle | ≥100000 Times |
| Temperature Deviation | ±3 / ±5 / ±10 Degree Or According To Client's Request |
| Contact Type | Normally Closed Or Normally Open |
| House | Plastic Or Ceramic |
| Mounting Bracket | Two kinds: Movable Or Immovable |
| Terminal Type | A. Terminal Type: 187series Of 4.8*0.5mm And 4.8*0.8mm, 250 Series Of 6.3*0.8mm B. Terminal Angle: Bending Angle: 0~90°C Optional |
Temperature controller, 10A 250V, Household appliance
