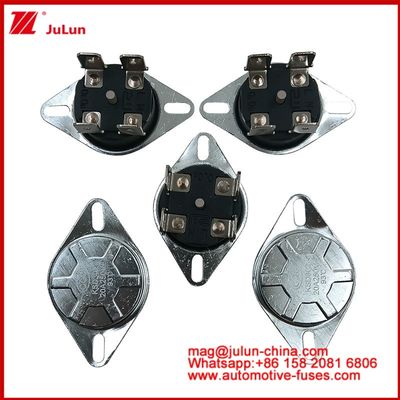

Manufacturer 1over Current Protection 7AM Thermal Overload Protector Switch For Home Automation DC Motor
Produktdetails:
| Herkunftsort: | CHINA |
| Markenname: | JULUN |
| Zertifizierung: | CE UL CCC |
| Modellnummer: | bimetallischer Thermostat KSD |
Zahlung und Versand AGB:
| Min Bestellmenge: | 100 |
|---|---|
| Preis: | 0.7~1.5 |
| Verpackung Informationen: | KARTON |
| Lieferzeit: | 1 bis 2 Wochen |
| Zahlungsbedingungen: | Tt |
| Versorgungsmaterial-Fähigkeit: | 1000K/mal |
|
Detailinformationen |
|||
| Spannung & Strom: | Wechselstrom 125V maximales 15A; AC250V 5A 10A 15A maximales 16A | Zwei Arten Schienenplatte: | beweglich oder unbeweglich |
|---|---|---|---|
| Isolierung resistanc: | AC50Hz 1500V/Minute, keine Zusammenbruchblendung (Normalzustand) | Temperaturfühlergesicht: | Aluminiumkappe oder kupferner Kopf. |
| Terminaltyp: | A. Terminalart: 187er Serie von 4,8*0,5mm und 4,8*0,8mm, 250er Serie von 6,3*0,8mm B. Endgerät Winke | Lebenszyklus: | Zeiten ≥100000 |
| Temperaturabweichung:: | Grad ±3/±5/±10 oder entsprechend dem Antrag des Kunden | Haus: | Plastik- oder keramisch. |
| Hervorheben: | thermal overload protector switch,7AM current protection switch,DC motor thermal protector |
||
Produkt-Beschreibung
Our Thermistor Temperature Sensor features temperature deviation options of ±3 / ±5 / ±10 degrees, or according to client's request, ensuring precise temperature control within specified ranges. The terminal type is customizable with options including 187series of 4.8*0.5mm and 4.8*0.8mm, and 250 series of 6.3*0.8mm. Terminal angle can be set to bending angle: 0~90°C for flexible installation.
With voltage and current ratings of AC 125V max 15A, and AC250V 5A 10A 15A max 16A, our sensor is suitable for diverse applications. It includes two mounting bracket options - movable and immovable - to suit specific installation needs.
Ideal for home appliances, industrial equipment, or laboratory settings, our sensor features pin type, jump switch, and temperature control switch for easy integration into existing systems.
- Product Name: Thermistor Temperature Sensor
- Life cycle: ≥100,000 operations
- Temperature sensor face: Aluminum Cap or Copper Head
- Voltage & Current: AC 125V Max 15A; AC250V 5A 10A 15A Max 16A
- Temperature difference: 0 To 25 Degrees (customizable)
- Contact type: Normally Closed or Normally Open

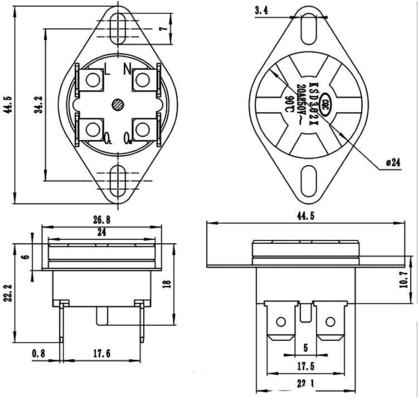

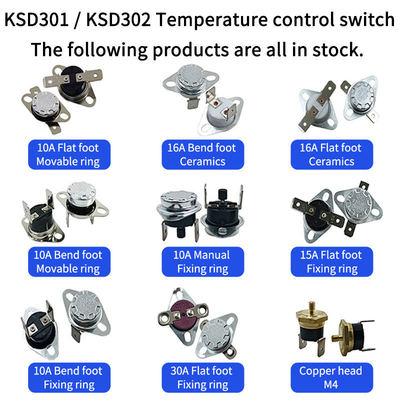

- Model: KSD301
- Current: 10~20A, 10A 250V
| Parameter | Value |
|---|---|
| Mounting Bracket | Movable or Immovable |
| Housing | Plastic or Ceramic |
| Contact Type | Normally Closed or Normally Open |
| Terminal Type | A. 187series: 4.8*0.5mm and 4.8*0.8mm B. 250 Series: 6.3*0.8mm C. Terminal Angle: 0~90°C |
| Circuit Resistance | ≤50mΩ (Initial Value) |
| Temperature Deviation | ±3 / ±5 / ±10°C (customizable) |
| Action Temperature | 0~250℃ |
| Temperature Difference | 0 To 25°C (customizable) |
| Insulation Resistance | AC50Hz 1500V/Min, No Breakdown |
| Voltage & Current | AC 125V Max 15A; AC250V 5A 10A 15A Max 16A |
| Type | Metal expansion type, hexagonal |
The JULUN KSD Bimetal Thermostat is CE, UL, and CCC certified for quality and safety. Minimum order quantity is 100 units at $0.7~1.5 per unit, with 1-2 week delivery in carton packaging.
Common applications include:
- Household appliances (refrigerators, ovens)
- Industrial machinery temperature control
- Automotive engine temperature regulation
- Medical equipment (incubators, sterilizers)
Operates in 0~250°C range with threaded brass housing option. Features customizable temperature difference (0-25°C), contact type (NC/NO), and temperature deviation (±3/±5/±10°C).
Available customization features:
- Temperature sensor face: Aluminum Cap or Copper Head
- Mounting brackets: Movable or Immovable
- Temperature controller specifications
- Pin type configurations
- Metal expansion type variations
Circuit resistance ≤50mΩ with ≥100,000 operation life cycle. Insulation resistance AC50Hz 1500V/Min with no breakdown.
Comprehensive technical support includes:
- Installation guidance
- Troubleshooting and diagnostics
- Repair and replacement services
- Calibration and testing
- Maintenance and cleaning
Expert technical assistance available for all product-related inquiries.
